Für Scheibeneggen
GW 211PP4

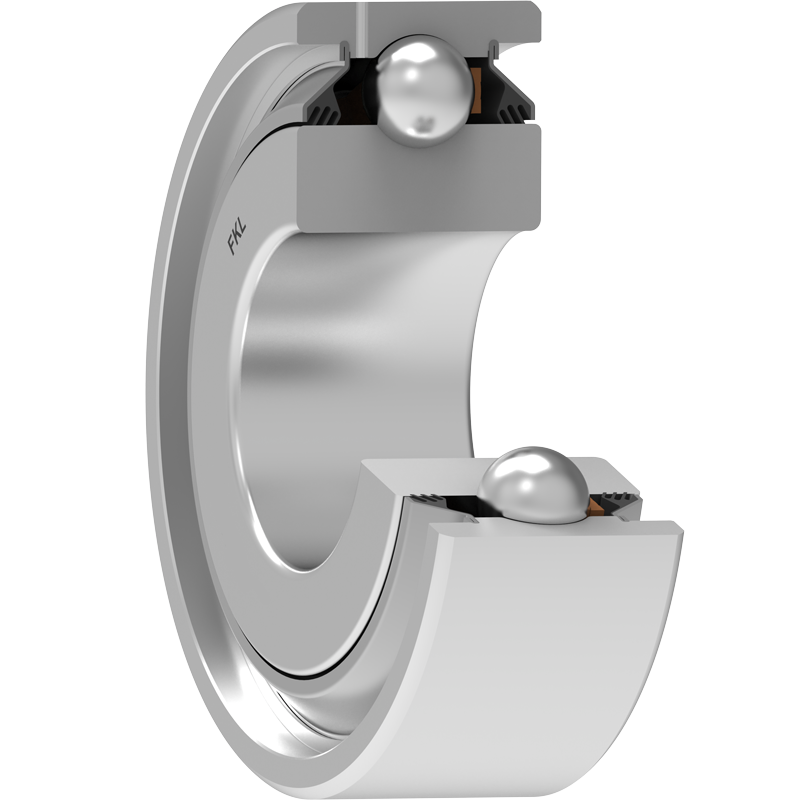

Round Bore Series With Cylindrical Outer Ring – Relubricable Type
Applikation:

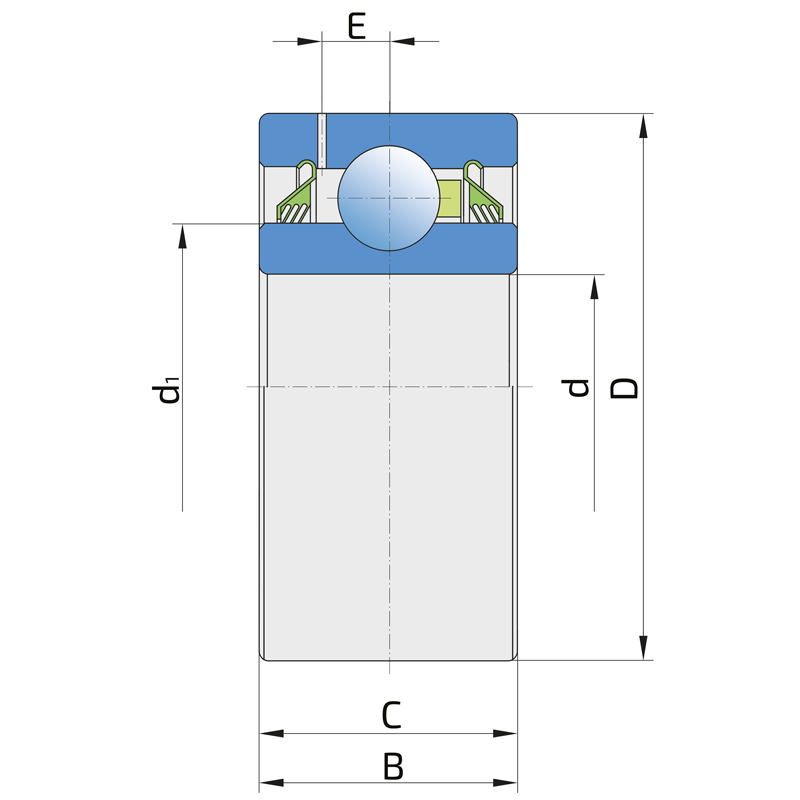

| d | Bore diameter | 1.6598 | inch |
| d | Bohrungsdurchmesser | 42.16 | mm |
| D | Outside diameter | 3.937 | inch |
| D | Außendurmesser | 100 | mm |
| B | Width inner ring | 1.313 | inch |
| B | Breite Innenring | 33.34 | mm |
| C | Width outer ring | 1.313 | inch |
| C | Breite Außenring | 33.34 | mm |
| d1 | Outer diameter inner ring | 2.72 | inch |
| d1 | Außendurchmesser Innenring | 69.1 | mm |
| E | Distance from raceway centre to the hole for lubrication | 0.28 | inch |
| E | Abstand Laufbahnmitte bis Schmierbohrung | 7.1 | mm |
| Cdyn | Dynamic load rating | 9700 | lbs |
| Cdyn | Dynamische Tragzahl | 43.5 | kN |
| Co | Static load rating | 6500 | lbs |
| Co | Statische Tragzahl | 29 | kN |
| kg | Mass | 3 | lbs |
| kg | Gewicht | 1.36 | kg |
