Für Scheibeneggen
GW 210PP9

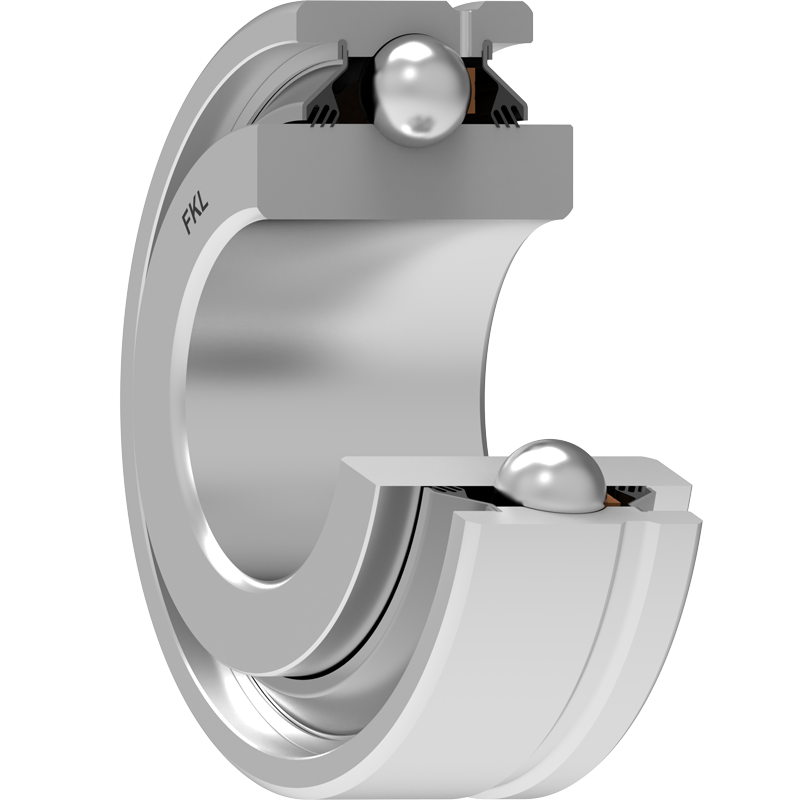

Round Bore Series With Cylindrical Outer Ring – Relubricable Type
Applikation:

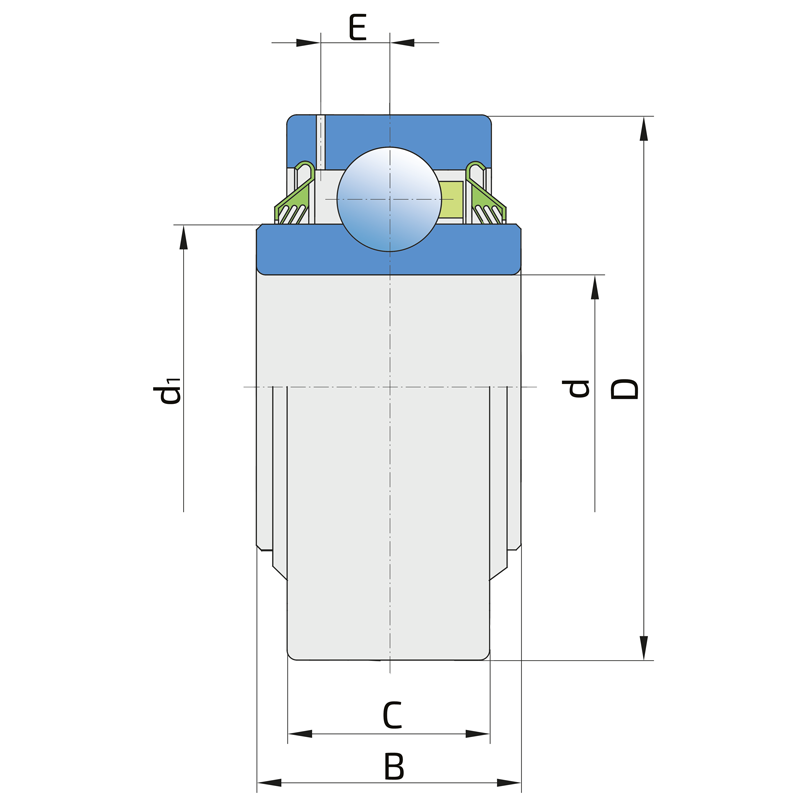

| d | Bore diameter | 1.9449 | inch |
| d | Bohrungsdurchmesser | 49.4 | mm |
| D | Outside diameter | 3.543 | inch |
| D | Außendurmesser | 90 | mm |
| B | Width inner ring | 1.438 | inch |
| B | Breite Innenring | 36.53 | mm |
| C | Width outer ring | 0.906 | inch |
| C | Breite Außenring | 23 | mm |
| d1 | Outer diameter inner ring | 2.461 | inch |
| d1 | Außendurchmesser Innenring | 62.5 | mm |
| E | Distance from raceway centre to the hole for lubrication | 0.26 | inch |
| E | Abstand Laufbahnmitte bis Schmierbohrung | 6.6 | mm |
| Cdyn | Dynamic load rating | 7800 | lbs |
| Cdyn | Dynamische Tragzahl | 35 | kN |
| Co | Static load rating | 5200 | lbs |
| Co | Statische Tragzahl | 23.2 | kN |
| kg | Mass | 1.75 | lbs |
| kg | Gewicht | 0.79 | kg |
