Für Scheibeneggen
GW 209PPB13

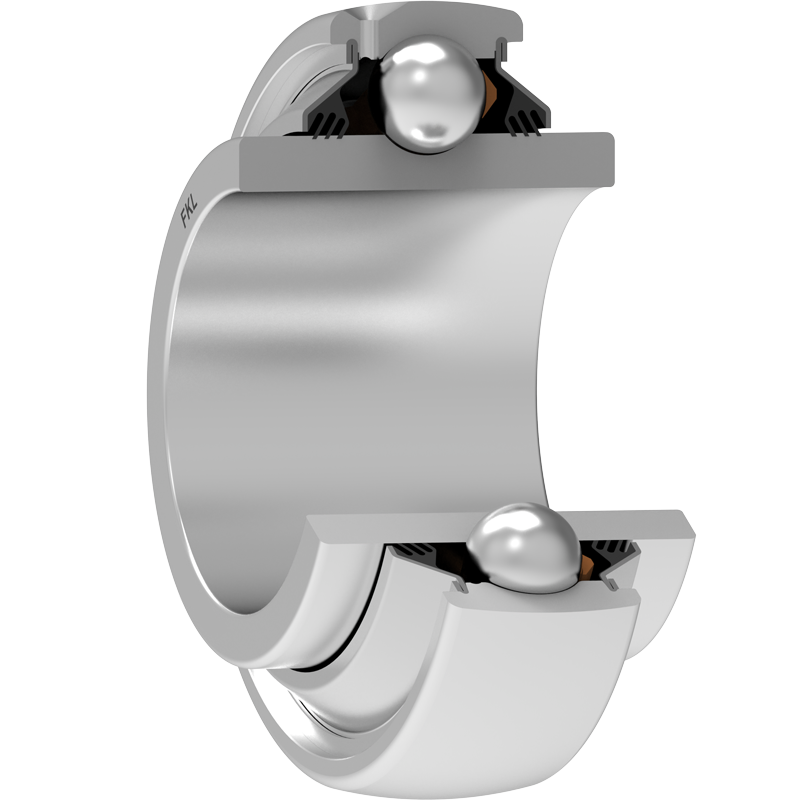

Round Bore Series With Spherical Outer Ring – Relubricable Type
Applikation:

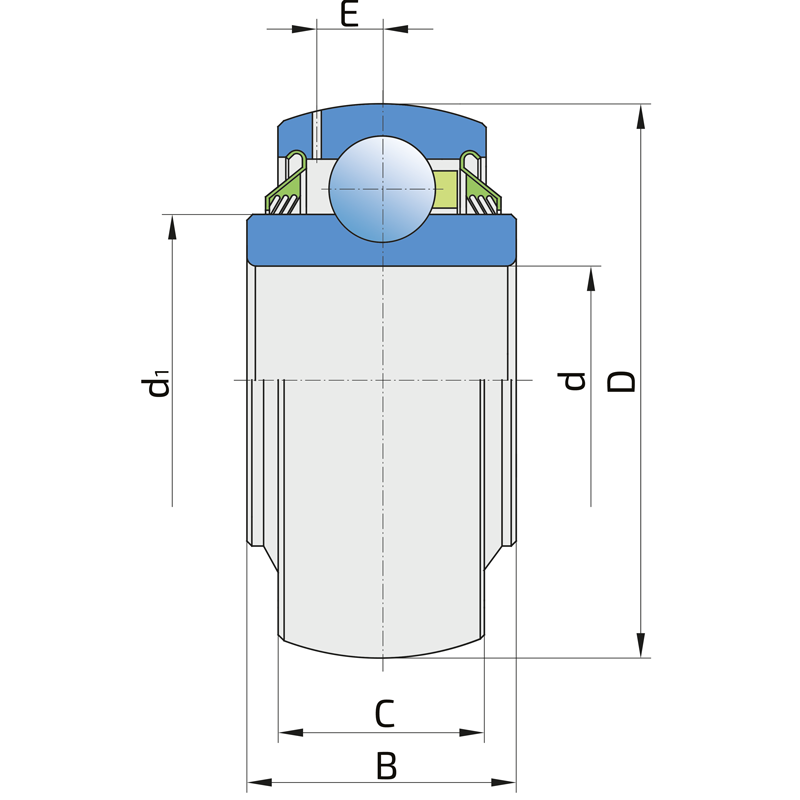

| d | Bore diameter | 1.7811 | inch |
| d | Bohrungsdurchmesser | 45.24 | mm |
| D | Outside diameter | 3.347 | inch |
| D | Außendurmesser | 85 | mm |
| B | Width inner ring | 1.438 | inch |
| B | Breite Innenring | 36.53 | mm |
| C | Width outer ring | 1.185 | inch |
| C | Breite Außenring | 30 | mm |
| d1 | Outer diameter inner ring | 2.228 | inch |
| d1 | Außendurchmesser Innenring | 56.6 | mm |
| E | Distance from raceway centre to the hole for lubrication | 0.256 | inch |
| E | Abstand Laufbahnmitte bis Schmierbohrung | 6.5 | mm |
| Cdyn | Dynamic load rating | 7300 | lbs |
| Cdyn | Dynamische Tragzahl | 32.5 | kN |
| Co | Static load rating | 4600 | lbs |
| Co | Statische Tragzahl | 20.4 | kN |
| kg | Mass | 1.41 | lbs |
| kg | Gewicht | 0.65 | kg |
